Screw press machine CTYZ-300

Time：2023-03-11

Contact us

Information：


Description

The screw press dewatering machine is a dehydration device that uses a spiral screw to squeeze materials. It consists of a drive system, feed hopper, spiral screw, screen, pneumatic discharge gate, and frame. Material enters through the hopper, is progressively compressed by the auger, and releases moisture through the screen. The dewatered material is then discharged via the pneumatic gate.

Working Principle

In the first stage, the material enters the screw shaft. As the material is transferred to the discharge section, the space it experiences becomes smaller and smaller. The material is compressed and thus the moisture is squeezed out. In the second stage, the material is conveyed to the discharge port. At this time, the pneumatic pressure resistance material tray applies reverse force, and the material clumps together to squeeze out the moisture for the second time.


Application scope

Waste Reduction	Kitchen Waste,Vegetable Waste,Fruit Waste,Plastic Waste,Fungus Residue, Cassava Residue,Coffee Grounds,Chemical Industry Waste,Slaughterhouse Waste,Charcoal,Beer Lees,Baijiu Lees,Activated Carbon, Feathers,Fish,Shrimp.
Fiber Dehydration	Pulp,Wood Pulp,Bamboo Pulp,Sawdust, Pasture,Corn Stalks,Rice Straw,Wheat Straw,Sugarcane.
Ingredient Extraction	Hemp,Stevia,Mixed Medicine Residue,Tea Residue,Xylitol,Honeysuckle,Malt,Burdock,Tangerine Peel.
Fruit Juice Extraction	Apple,Pear,Lemon,Orange,Monk Fruit,Mango,Coconut,Papaya,Pineapple,Grape.
Vegetable Juice Extraction	Cabbage,Onion,Ginger,Celery,Tomato,Garlic,Beetroot,Carrot,Radish.
Livestock Farm	Cow manure


Equipment Parameter

Model	Motor Power	Weight	Processing Capacity	Screw Diameter	Dimension
CTYZ-160	3KW	380kg	0.5-1m³/h	160mm	13804001500mm
CTYZ-200	7.5kw	650kg	2-5m³/h	200mm	25867701400mm
CTYZ-300	18.5kw	1500kg	5-10m³/h	300mm	41428901946mm
CTYZ-400	22kw	3500kg	10-15m³/h	400mm	450010002003mm
CTYZ-500	55KW	4800kg	15-20m³/h	500mm	522011002330mm
CTYZ-600	75kw	7500kg	20-30m³/h	600mm	660013002500mm

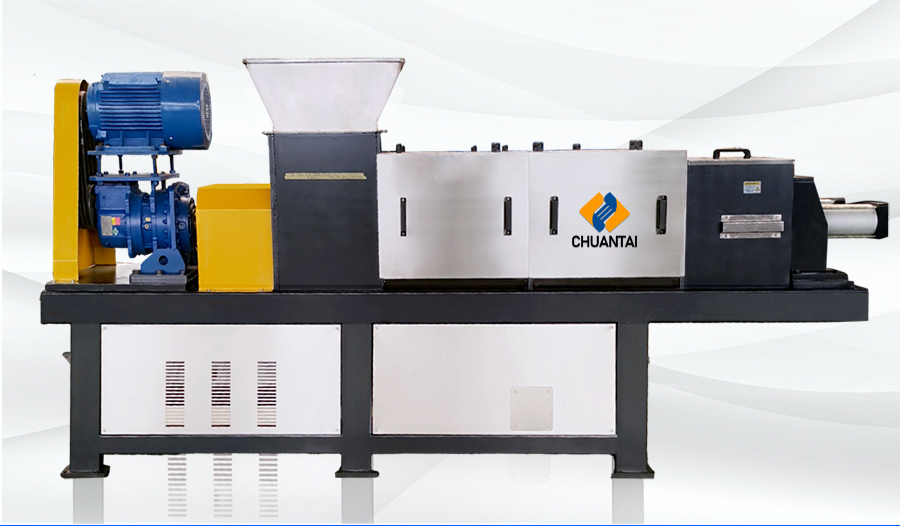

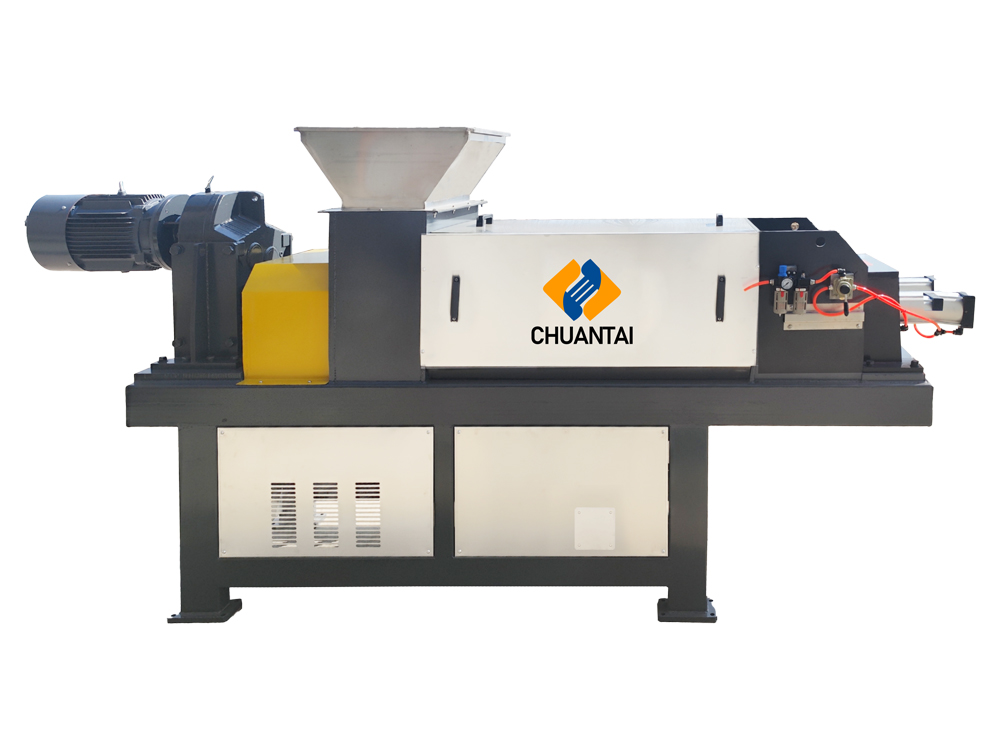

Real photos


Details

Company Introduction

Chuantai Machinery Co., Ltd. since 2011，dedicated to the environmental pollution control industry. Our company holds CEcertificates, ISO9901, ISO14001 and ISO45001 certificates, and is a high-tech enterprise. We focus on providing comprehensivetreatment solutions for organic waste . The equipment produced by our company includes screw press dewatering machine,solid-liquid separator, organic fertilizer fermentation machine, double-shaft shredder, conveying equipment, etc.
