Description
The screw press machine is a dehydration device that utilizes a physical squeezing method. The material enters the equipment from the feeding box and, under the conveyance of the spiral auger, undergoes progressive pressure squeezing. The water is forced to discharge through the screen, and the material is discharged from the device through the top-opening obstruction device. This dehydration method does not require a heat source or ventilation, making it the most cost-effective dehydration method suitable for various materials.
Application
| Waste Reduction | Kitchen Waste,Vegetable Waste,Fruit Waste,Plastic Waste,Fungus Residue, Cassava Residue,Coffee Grounds,Chemical Industry Waste,Slaughterhouse Waste,Charcoal,Beer Lees,Baijiu Lees,Activated Carbon,Chicken/Duck/Goose Feathers,Fish,Shrimp. | |||
| Fiber Dehydration | Pulp,Wood Pulp,Bamboo Pulp,Sawdust, Pasture,Corn Stalks,Rice Straw,Wheat Straw,Sugarcane. | |||
| Ingredient Extraction | Hemp,Stevia,Mixed Medicine Residue,Tea Residue,Xylitol,Honeysuckle,Malt,Burdock,Tangerine Peel. | |||
| Fruit Juice Extraction | Apple,Pear,Lemon,Orange,Monk Fruit,Mango,Coconut,Papaya,Pineapple,Grape. | |||
| Vegetable Juice Extraction | Cabbage,Onion,Ginger,Celery,Tomato,Garlic,Beetroot,Carrot,Radish. | |||
| Livestock Farm | Cow Dung | |||
Equipment Showcase

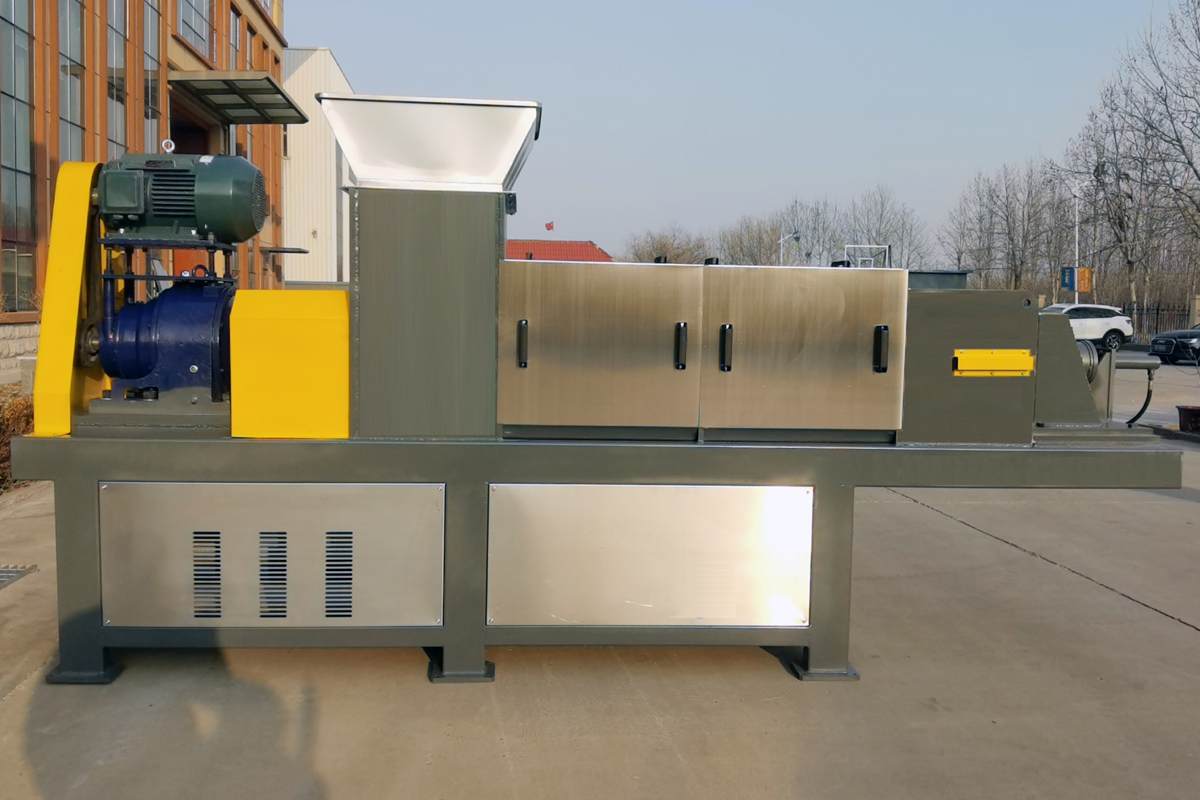

CT-200 screw press machine

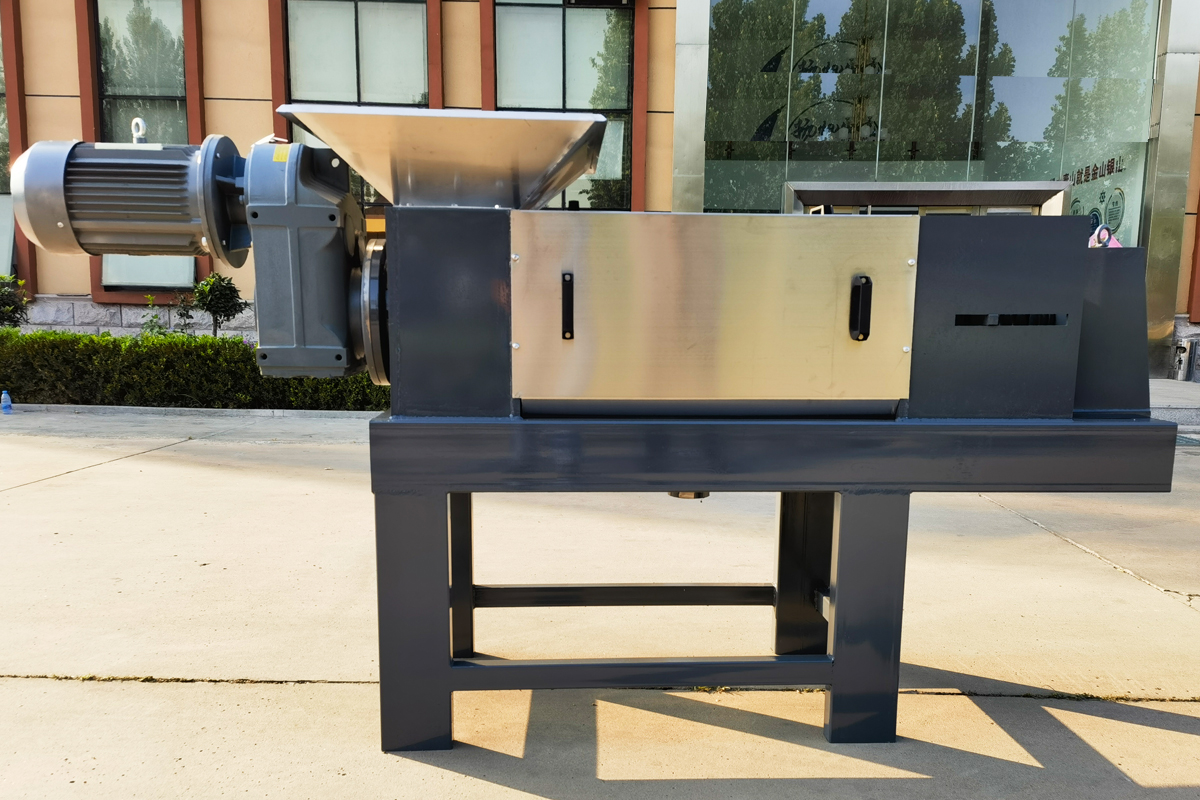

CT-300 screw press machine

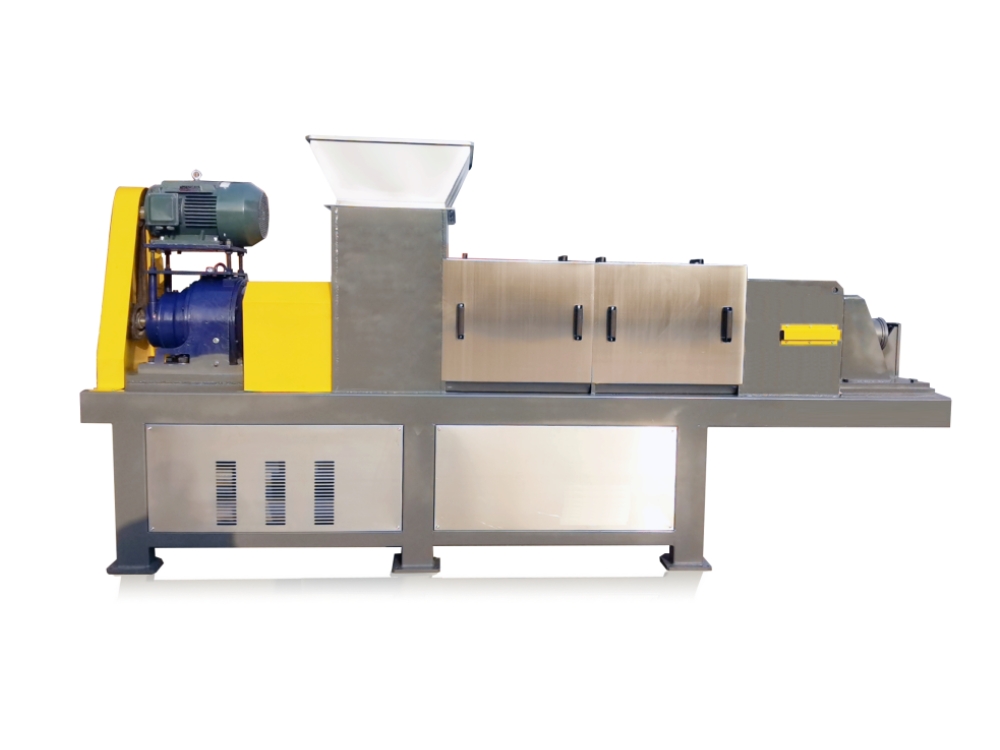

CT-400 screw press machine
Parameters
| Model | Motor Power | Weight | Processing Capacity | Screw Diameter | Dimension （mm） |
| CT-200 | 7.5kw | 650kg | 2-5m³/h | 200mm | 2586*770*1400 |
| CT-300 | 18.5kw | 1500kg | 5-10m³/h | 300mm | 4142*890*1946 |
| CT-400 | 22kw | 3500kg | 10-15m³/h | 400mm | 4500*1000*2003 |
| CT-600 | 75kw | 7500kg | 20-30m³/h | 60mm | 6600*1300*2500 |
Selection Recommendations
Simple Assessment Method: Grasp the dehydrated material with your hand and squeeze it forcefully. If residue is left in your palm and water flows through your fingers, it is suitable for this equipment. Our company provides free machine testing services. You can bring materials in person or mail them to our company for testing before making a purchase.
Comparison Before and After Dehydration
Comparison Before and After Dehydration of Kitchen Waste
Comparison Before and After Dehydration of Vegetable Waste
Working Principle
The spiral press dehydrator undergoes a two-stage dehydration process. In the first stage, utilizing the spiral auger with transmission, compression, and discharge sections, material entry is smooth. The dehydration section reduces transfer space, applying pressure to decrease material volume and extract water. In the second stage, a blocking device is used. As materials enter the discharge section, axial thrust pushes them out, and the pressurized hydraulic blocking device provides counterforce for extrusion pressure in the second-stage dehydration.
Structural Diagram
Advantages
◆Low-cost operation: The spiral press dehydrator utilizes the physical extrusion principle, requiring no additional heat source and resulting in lower energy consumption.
◆High processing capacity: Through a special process, the spiral auger enhances axial thrust, resolving operational issues and significantly increasing processing capacity per unit of time.
◆Low residual moisture: Engineers customize parameters based on material characteristics, reducing extruded material moisture content and enhancing physical pressing effectiveness.
◆Wear and corrosion resistance: Key components are coated for wear resistance, and the spiral auger blades are surfaced with alloy tips. Core components are made of 304 stainless steel, extending the equipment lifespan.

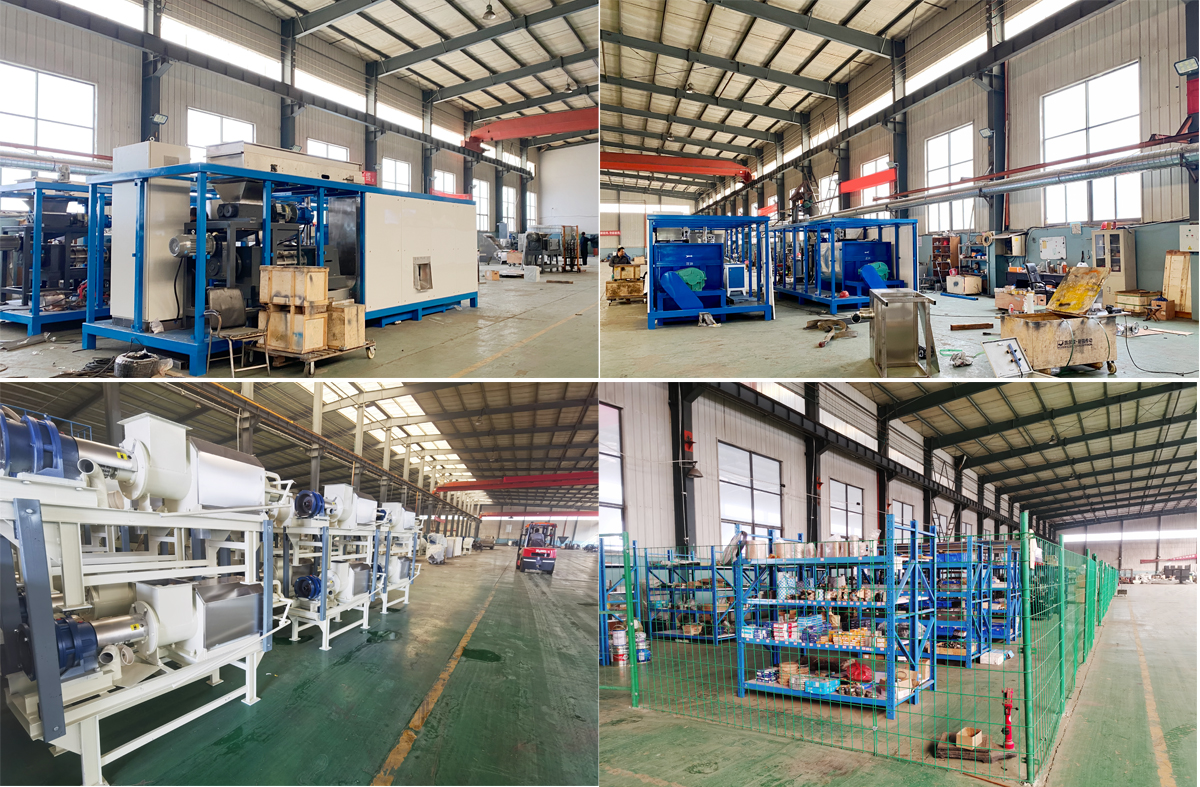

Production Site

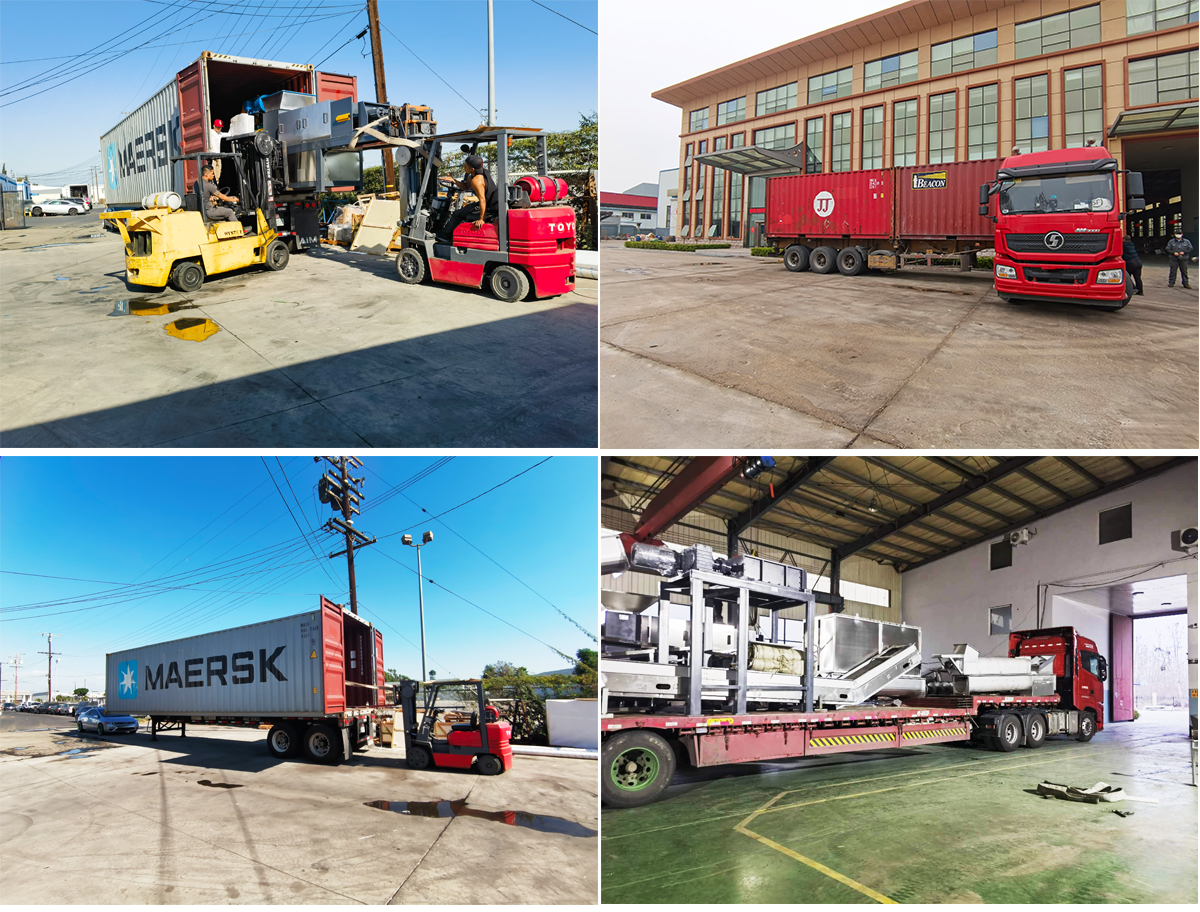

Shipping Site
