Comparison Before and After Dehydration of Vegetable Waste
The benefits of dehydrating coconut shell.
◆Efficient Dehydration: Designed with a spiral auger, the screw press machine facilitates continuous mechanical squeezing of coconut husks. This squeezing process efficiently eliminates moisture from the husks, enhancing dehydration efficiency and ensuring a drier end product.
◆Reduced Energy Consumption: In contrast to traditional methods like hot air drying, the screw press machine employs mechanical squeezing, eliminating the need for additional heat sources. This reduces energy consumption, making the entire dehydration process more economically efficient.
◆Preservation of Raw Material Quality: Mechanical squeezing is a relatively gentle dehydration method, aiding in preserving beneficial components in coconut husks. This ensures the quality of the final product. Therefore, the screw press machine not only effectively removes moisture but also maintains the quality of the raw material.
Application
| Waste Reduction |
Kitchen Waste,Vegetable Waste,Fruit Waste,Plastic Waste,Fungus Residue, Cassava Residue,Coffee Grounds,Chemical Industry Waste,Slaughterhouse Waste,Charcoal,Beer Lees,Baijiu Lees,Activated Carbon,Chicken/Duck/Goose Feathers,Fish,Shrimp. |
|||
| Fiber Dehydration | Pulp,Wood Pulp,Bamboo Pulp,Sawdust, Pasture,Corn Stalks,Rice Straw,Wheat Straw,Sugarcane. | |||
| Ingredient Extraction | Hemp,Stevia,Mixed Medicine Residue,Tea Residue,Xylitol,Honeysuckle,Malt,Burdock,Tangerine Peel. | |||
| Fruit Juice Extraction | Apple,Pear,Lemon,Orange,Monk Fruit,Mango,Coconut,Papaya,Pineapple,Grape. | |||
| Vegetable Juice Extraction | Cabbage,Onion,Ginger,Celery,Tomato,Garlic,Beetroot,Carrot,Radish. | |||
| Livestock Farm | Cow Dung | |||
Structural Diagram
Parameters
| Model | Motor Power | Weight | Processing Capacity | Screw Diameter | Dimension （mm） |
| CT-200 |
7.5kw |
650kg |
2-5m³/h | 200mm | 2586*770*1400 |
| CT-300 |
18.5kw |
1500kg |
5-10m³/h | 300mm |
4142*890*1946 |
| CT-400 |
22kw |
3500kg |
10-15m³/h | 400mm |
4500*1000*2003 |
| CT-600 |
75kw |
7500kg |
20-30m³/h | 60mm |
6600*1300*2500 |
Advantages
◆Low-cost operation: The spiral press dehydrator utilizes the physical extrusion principle, requiring no additional heat source and resulting in lower energy consumption.
◆High processing capacity: Through a special process, the spiral auger enhances axial thrust, resolving operational issues and significantly increasing processing capacity per unit of time.
◆Low residual moisture: Engineers customize parameters based on material characteristics, reducing extruded material moisture content and enhancing physical pressing effectiveness.
◆Wear and corrosion resistance: Key components are coated for wear resistance, and the spiral auger blades are surfaced with alloy tips. Core components are made of 304 stainless steel, extending the equipment lifespan.

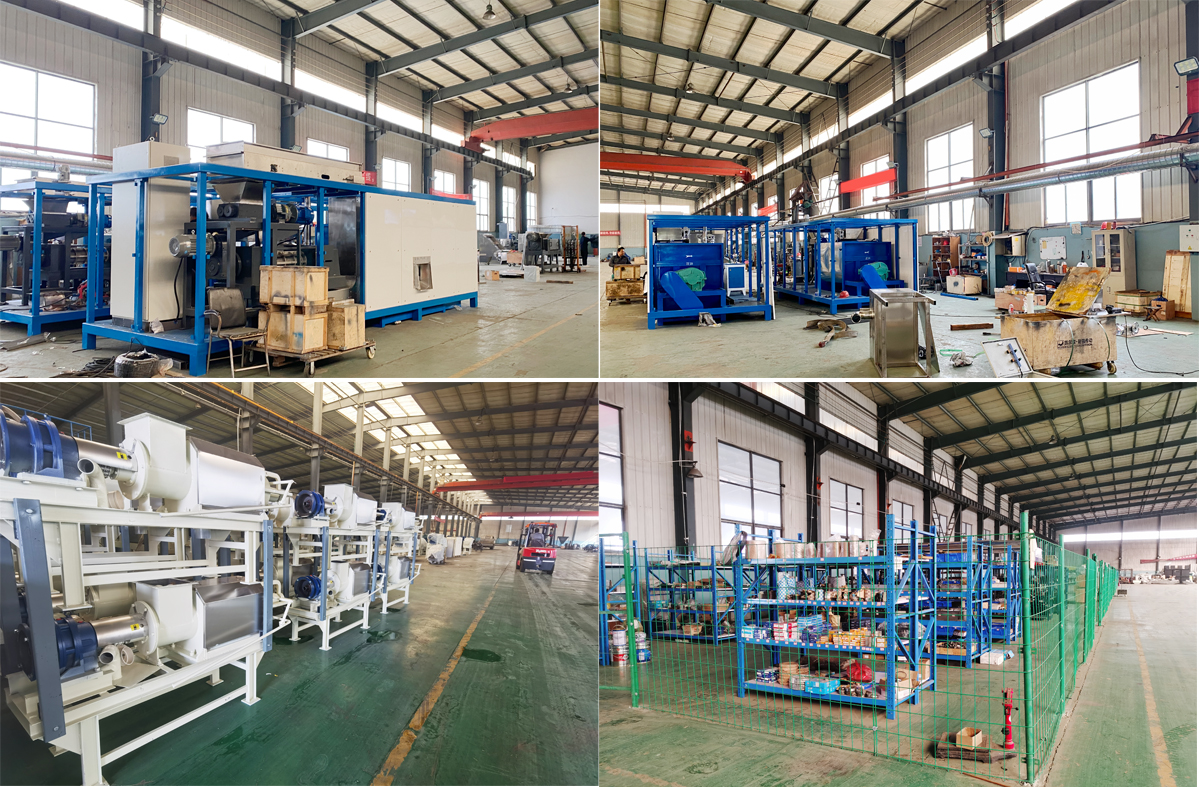

Production Site

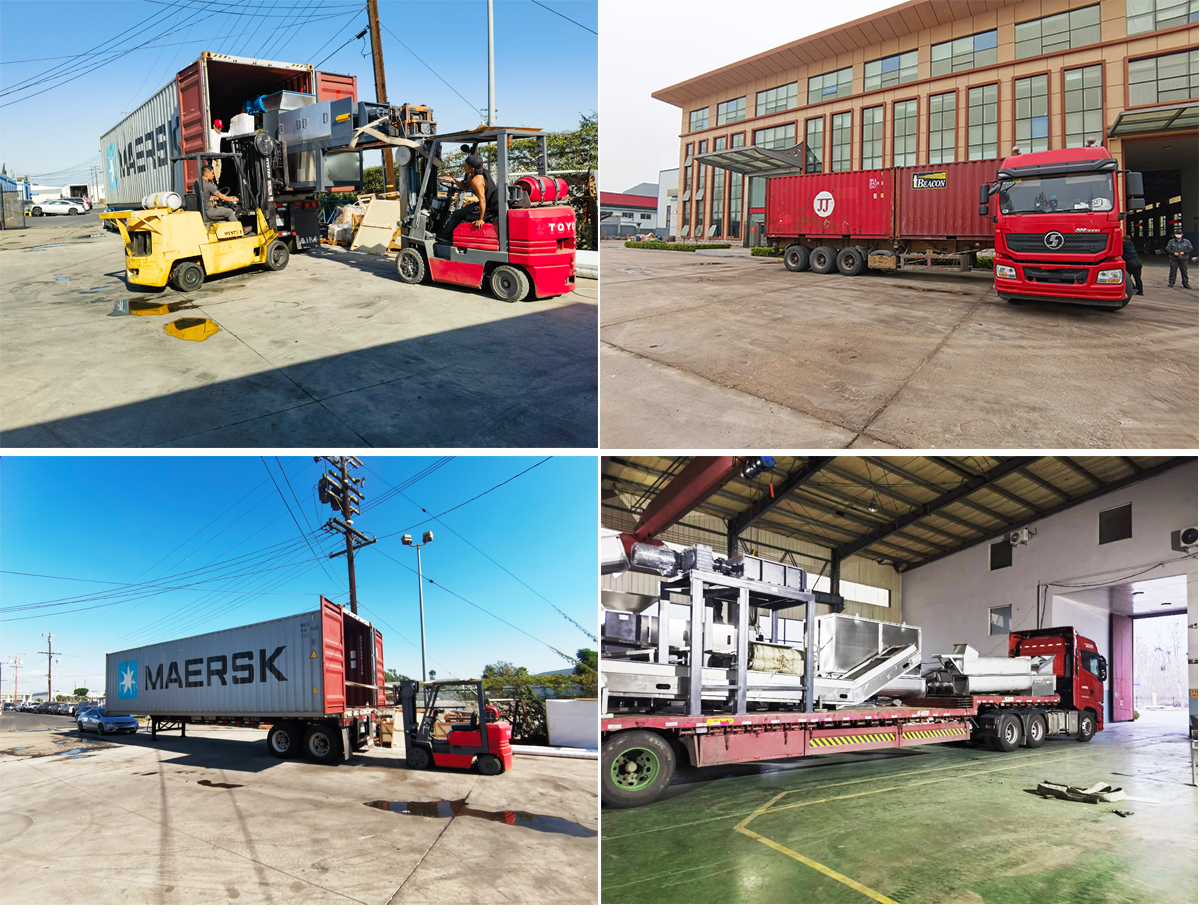

Shipping Site
